Product Overview

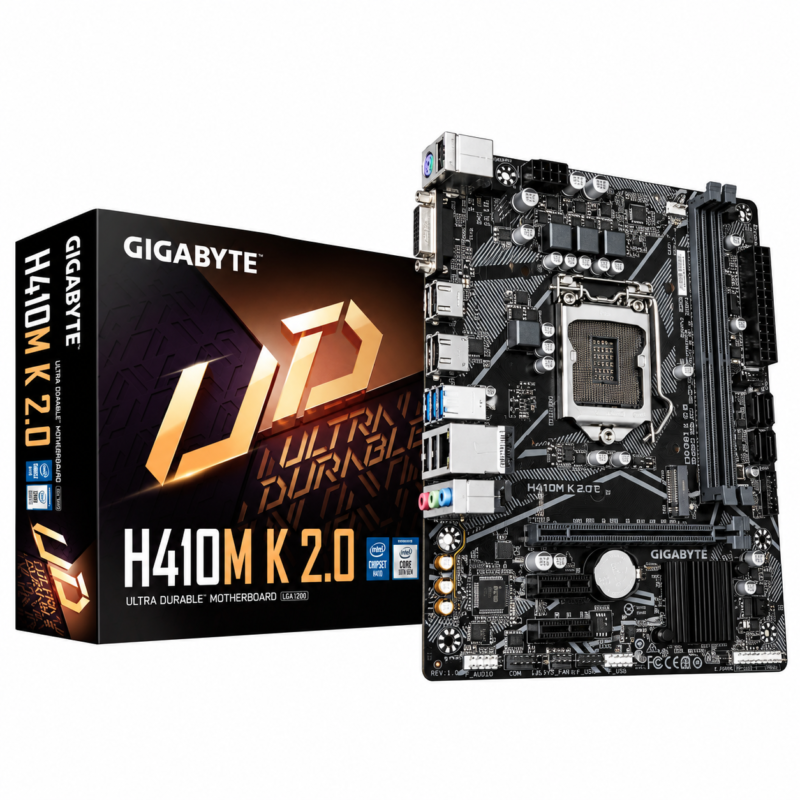

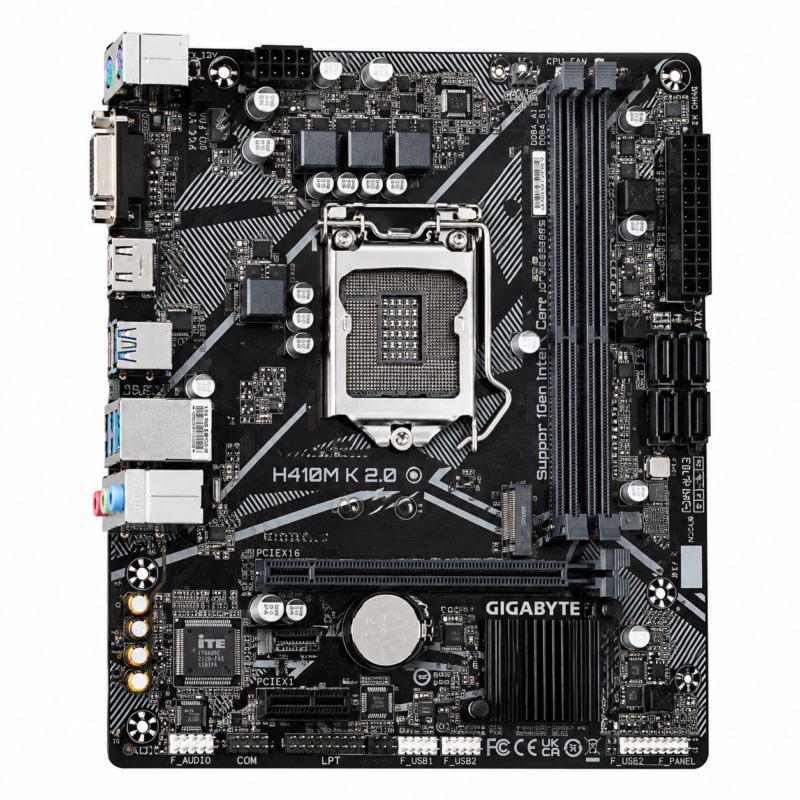

GIGABYTE H410M K 2.0 Motherboard is an Intel H410 motherboard designed for compatible 10th Gen Intel Core processors and LGA1200 systems.GIGABYTE H410M K 2.0 is an Intel H410-based Micro ATX motherboard designed for 10th Generation Intel processors using the LGA1200 package. It supports Intel Core i9, i7, i5, i3, Pentium and Celeron processors and provides dual-channel DDR4 memory support with two DIMM slots and up to 64 GB system memory. :chatgpt-content-reference{index=”3″}
Key Features
- Chipset: Intel H410 Express
- CPU Socket: LGA1200
- Processor Support: 10th Generation Intel Core i9/i7/i5/i3, Pentium and Celeron processors
- Memory: 2 × DDR4 DIMM, up to 64 GB
- Expansion: 1 × PCI Express x16 and 2 × PCI Express x1
- Storage: 1 × M.2 connector and 4 × SATA 6Gb/s connectors
- Networking: Realtek Gigabit LAN
- Audio: Realtek High Definition Audio, up to 7.1-channel
- Form Factor: Micro ATX
Specifications & Compatibility
| Attribute | Value |
|---|---|
| Chipset | Intel H410 Express |
| CPU Socket | LGA1200 |
| Supported CPUs | 10th Gen Intel Core i9/i7/i5/i3, Pentium and Celeron |
| Memory Type | DDR4 |
| Memory Slots | 2 × DDR4 DIMM |
| Maximum Memory | 64 GB |
| Memory Architecture | Dual Channel |
| PCI Express x16 | 1 × PCIe 3.0 x16 |
| PCI Express x1 | 2 × PCIe 3.0 x1 |
| M.2 | 1 × M.2 Socket 3, M key, 2280/2260/2242, SATA and PCIe x2 SSD support |
| SATA | 4 × SATA 6Gb/s |
| LAN | Realtek GbE LAN |
| Video Output | 1 × HDMI, up to 4096 × 2160 @ 30 Hz |
| USB 3.2 Gen 1 | 4 ports total |
| USB 2.0/1.1 | 6 ports total |
| Audio | Realtek High Definition Audio, 2/4/5.1/7.1-channel |
| Form Factor | Micro ATX |
| Dimensions | 22.6 × 17.4 cm |
| Operating System | Windows 11 64-bit; Windows 10 64-bit |
