Product Overview

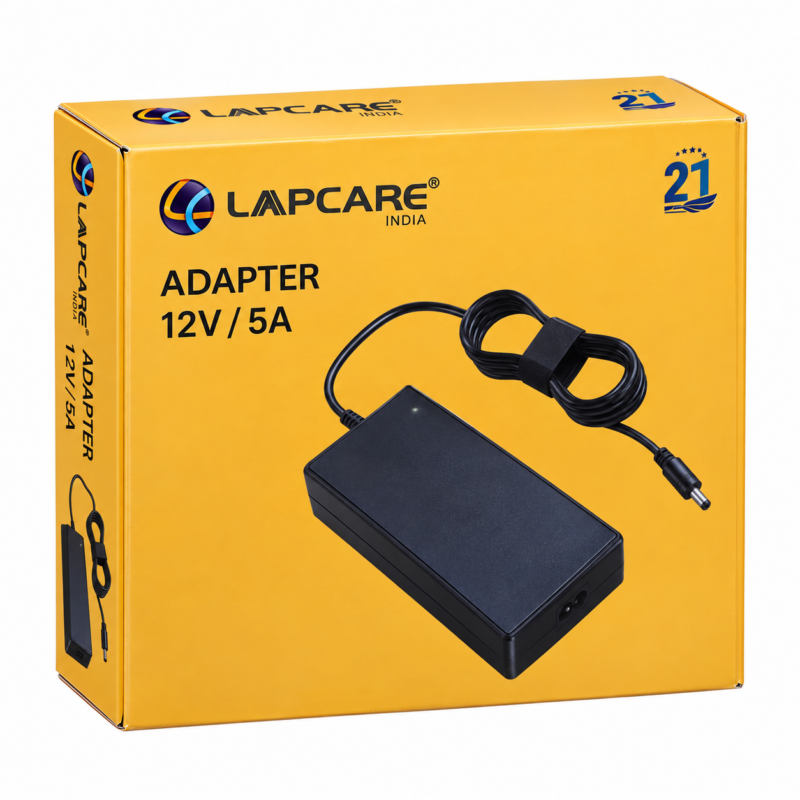

Lapcare 12V 5A DC adapter is a 12V DC power adapter with a maximum output of 5A and a rated power of 60W. The available Lapcare product information specifies over-current and short-circuit protection and a DC pin with Sony dual-wire connection.
The adapter can be used for compatible 12V DC equipment. For CCTV DVR applications, the DVR must specifically require 12V DC and the adapter’s connector size and polarity must match the DVR. CCTV DVR compatibility should therefore be checked against the individual DVR’s power specification before use.
Key Features
- 12V DC Output: Provides a specified 12V DC output.
- 5A Maximum Output: Rated for up to 5A output.
- 60W Rated Power: The specified rated power is 60W.
- Over-Current Protection: Provides listed over-current protection.
- Short-Circuit Protection: Provides listed short-circuit protection.
- DC Pin + Sony Dual Wire: The listed connection configuration is DC Pin + Sony Dual Wire.

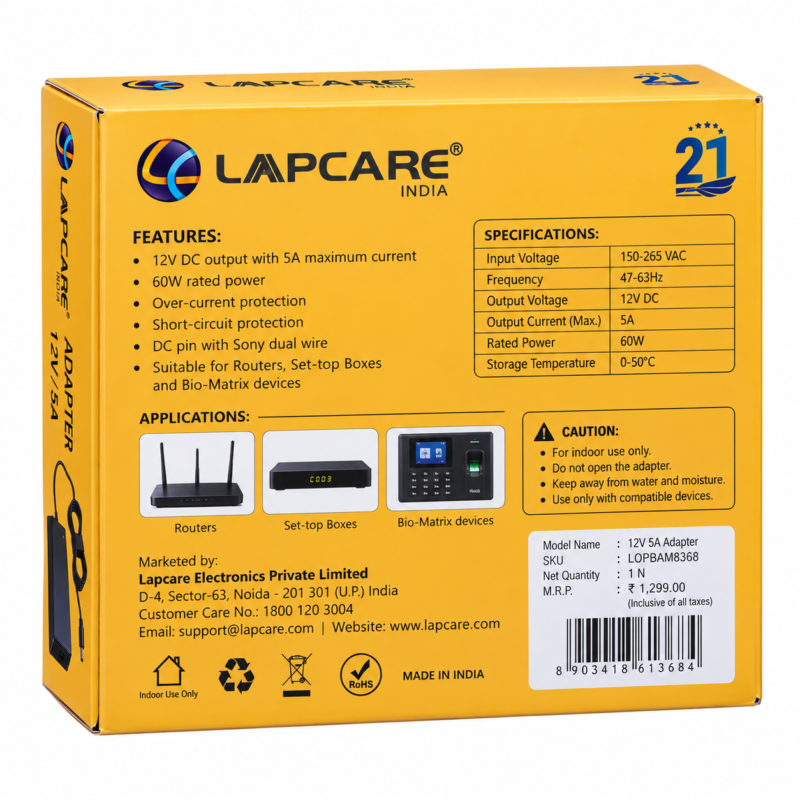

Specifications & Compatibility
| Attribute | Value |
|---|---|
| Brand | Lapcare |
| Product Type | 12V DC Power Adapter |
| Output Voltage | 12V DC |
| Maximum Output Current | 5A |
| Rated Power | 60W |
| Input Voltage | 150–265 VAC |
| Frequency Range | 47–63Hz |
| Storage Temperature | 0–50°C |
| Protection | Over-current protection; Short-circuit protection |
| Connection | DC Pin + Sony Dual Wire |
| Specified Applications | Routers, Set-top Boxes and Bio-Matrix devices |
CCTV DVR Compatibility
This adapter should only be used with a CCTV DVR when the DVR specifies 12V DC input and its required current does not exceed the adapter’s 5A maximum output. The DC connector size and polarity must also match the DVR. Specific CCTV DVR model compatibility has not been verified.
