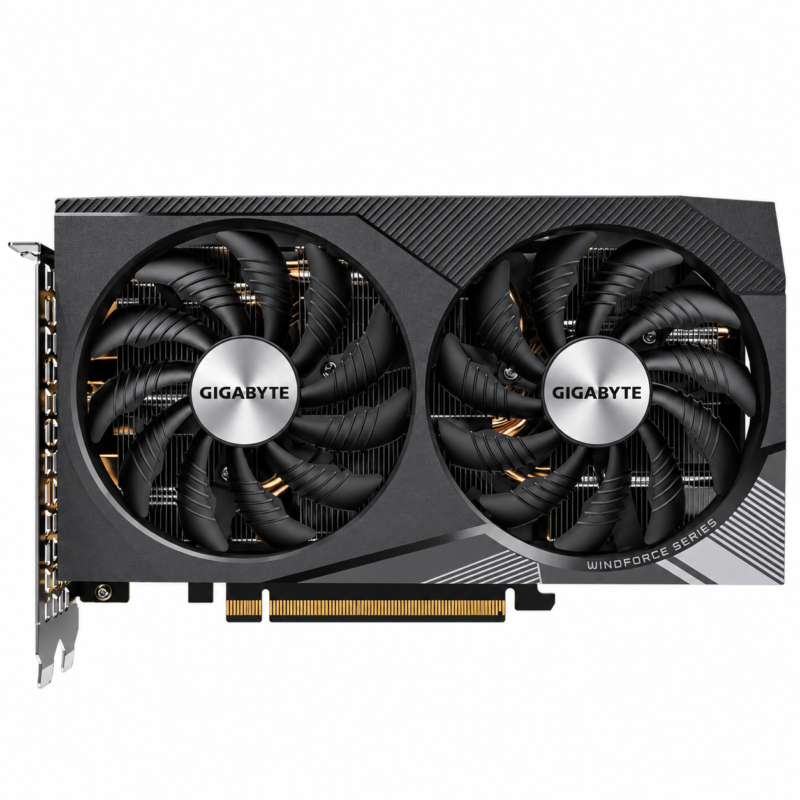

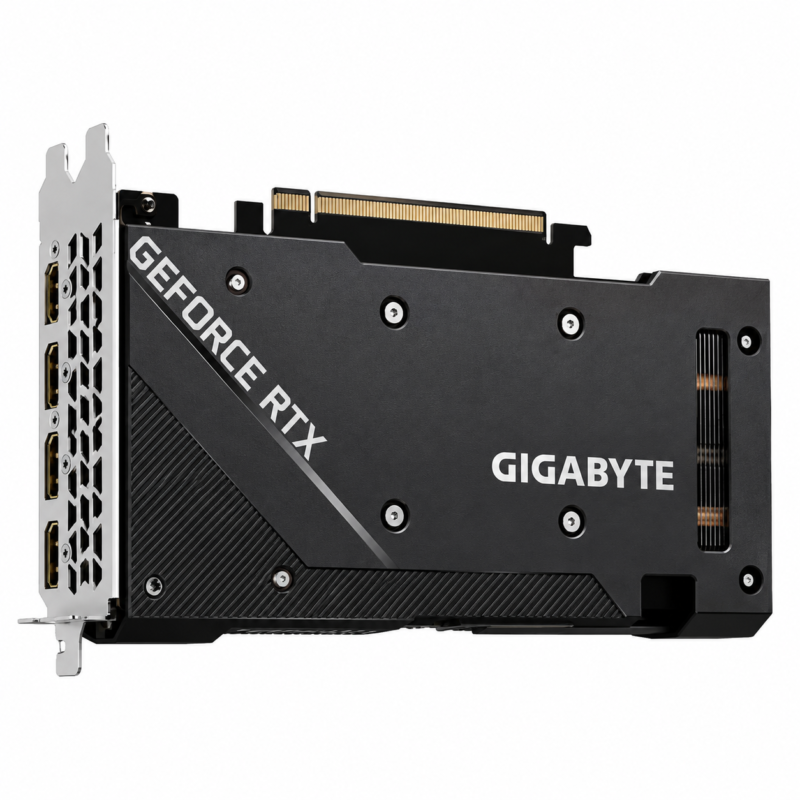

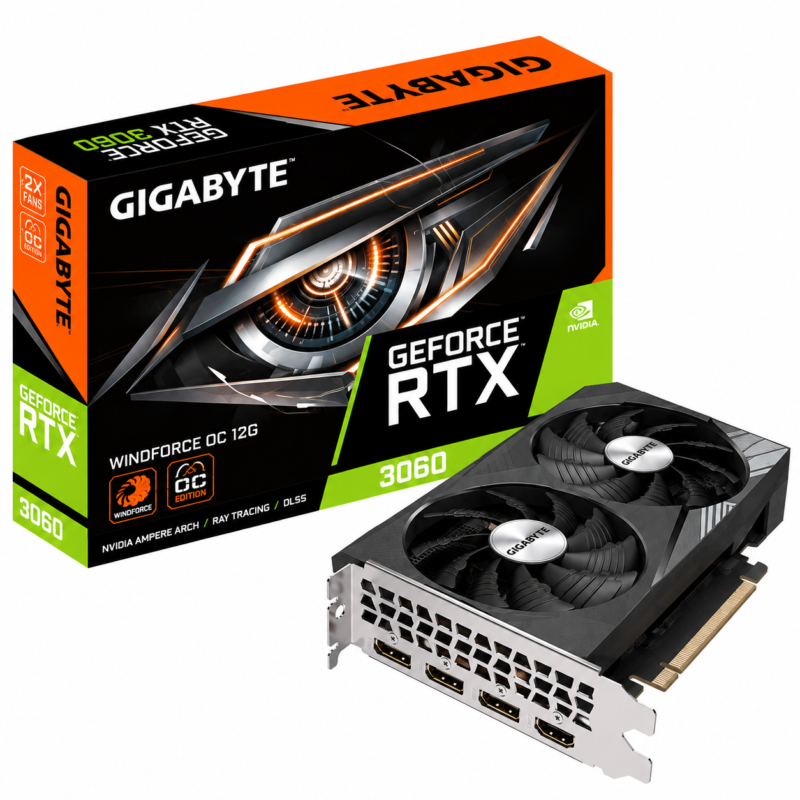

The GIGABYTE RTX 3060 WINDFORCE OC 12G is based on the NVIDIA GeForce RTX 3060 GPU and includes 12GB of GDDR6 memory with a 192-bit memory interface. GIGABYTE specifies a 1792 MHz core clock, 3584 CUDA cores and a PCI-E 4.0 x16 card bus for this model.
The card uses the WINDFORCE 2X cooling system with alternate-spinning fans. GIGABYTE also lists NVIDIA Ampere architecture, second-generation RT cores and third-generation Tensor cores for this graphics card. :chatgpt-content-reference{index=”3″}
Key Features
- GPU: NVIDIA GeForce RTX 3060
- Memory: 12GB GDDR6
- Memory Interface: 192-bit
- CUDA Cores: 3584
- Core Clock: 1792 MHz
- Memory Clock: 15000 MHz
- Cooling: WINDFORCE 2X with alternate-spinning fans
- Interface: PCI-E 4.0 x16
- Maximum Digital Resolution: 7680 × 4320
- Display Outputs: 2 × DisplayPort 1.4a and 2 × HDMI 2.1
- Recommended PSU: 550W
- Power Connector: 1 × 8-pin
Specifications & Compatibility
| Attribute | Verified Value |
|---|---|
| Graphics Processor | GeForce RTX 3060 |
| CUDA Cores | 3584 |
| Core Clock | 1792 MHz |
| Memory | 12GB GDDR6 |
| Memory Bus | 192-bit |
| Memory Clock | 15000 MHz |
| Memory Bandwidth | 360 GB/s |
| Card Bus | PCI-E 4.0 x16 |
| Maximum Digital Resolution | 7680 × 4320 |
| Multi-view | 4 |
| Card Dimensions | 198 × 121 × 39 mm |
| Cooling System | WINDFORCE 2X with alternate-spinning fans |
| DisplayPort | 2 × DisplayPort 1.4a |
| HDMI | 2 × HDMI 2.1 |
| Power Requirement | 550W recommended PSU |
| Power Connector | 1 × 8-pin |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| PCB Form | ATX |
GIGABYTE specifies PCI-E 4.0 x16 as the card interface and lists 2 × DisplayPort 1.4a, 2 × HDMI 2.1, a recommended 550W PSU and one 8-pin power connector.
